Radiator Valve Guide

Step 1
Choose your towel rail or radiator. Remember to check where your central heating pipework is located.
Step 2
Check which type of connection your chosen radiator has. (Side or bottom connection).
Step 3
Choose from one of the below valve types which compatible with your pipework.

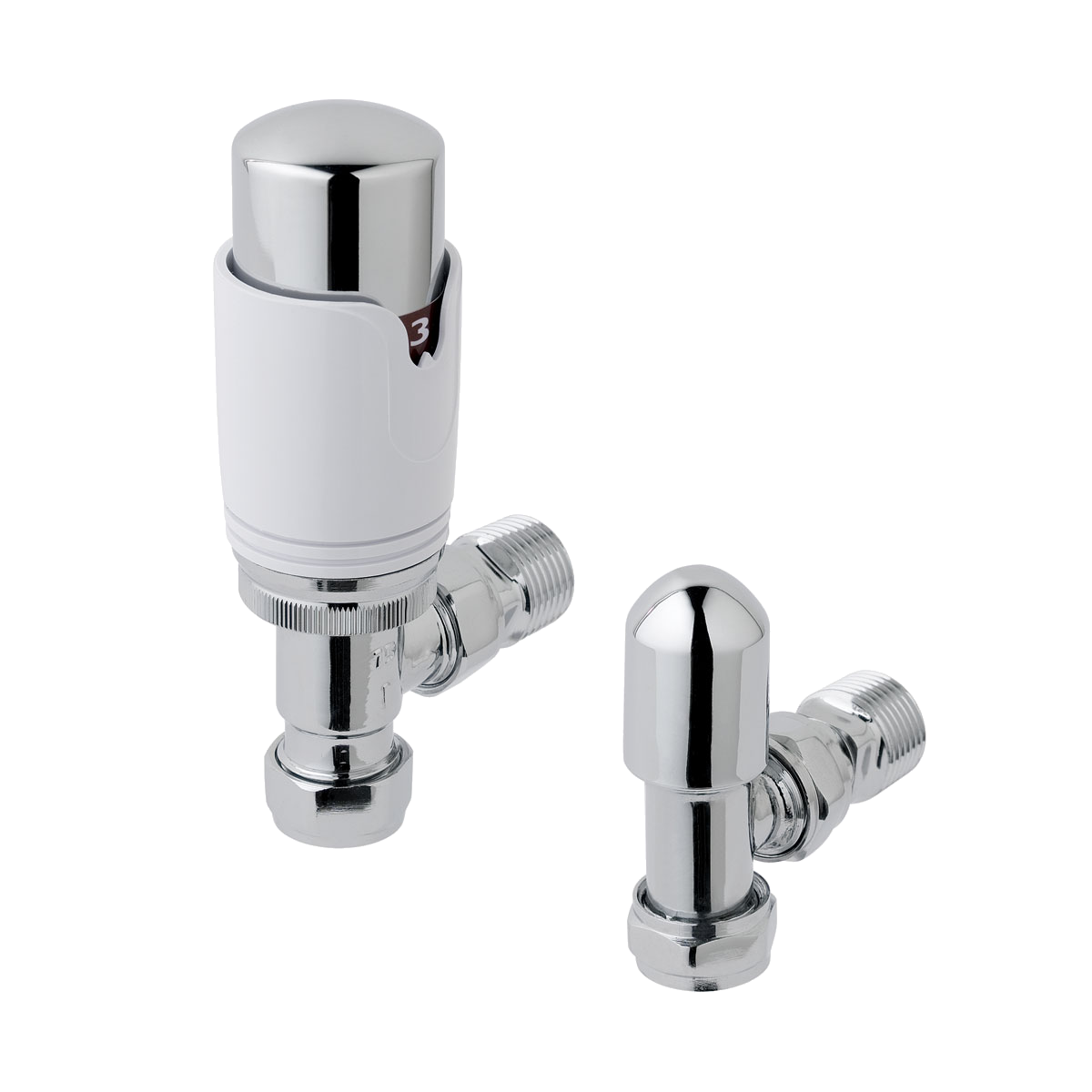

Angled Valves

FEATURES

• Most used valve type.

• Connects radiator at 90° angle.

• Pipework can be from the wall or floor.

COMPATIBLE WITH:

- Connections at the sides & pipework from the floor.

- Connections at the sides & pipework from the wall.

- Connections at the bottom & pipework from the wall.

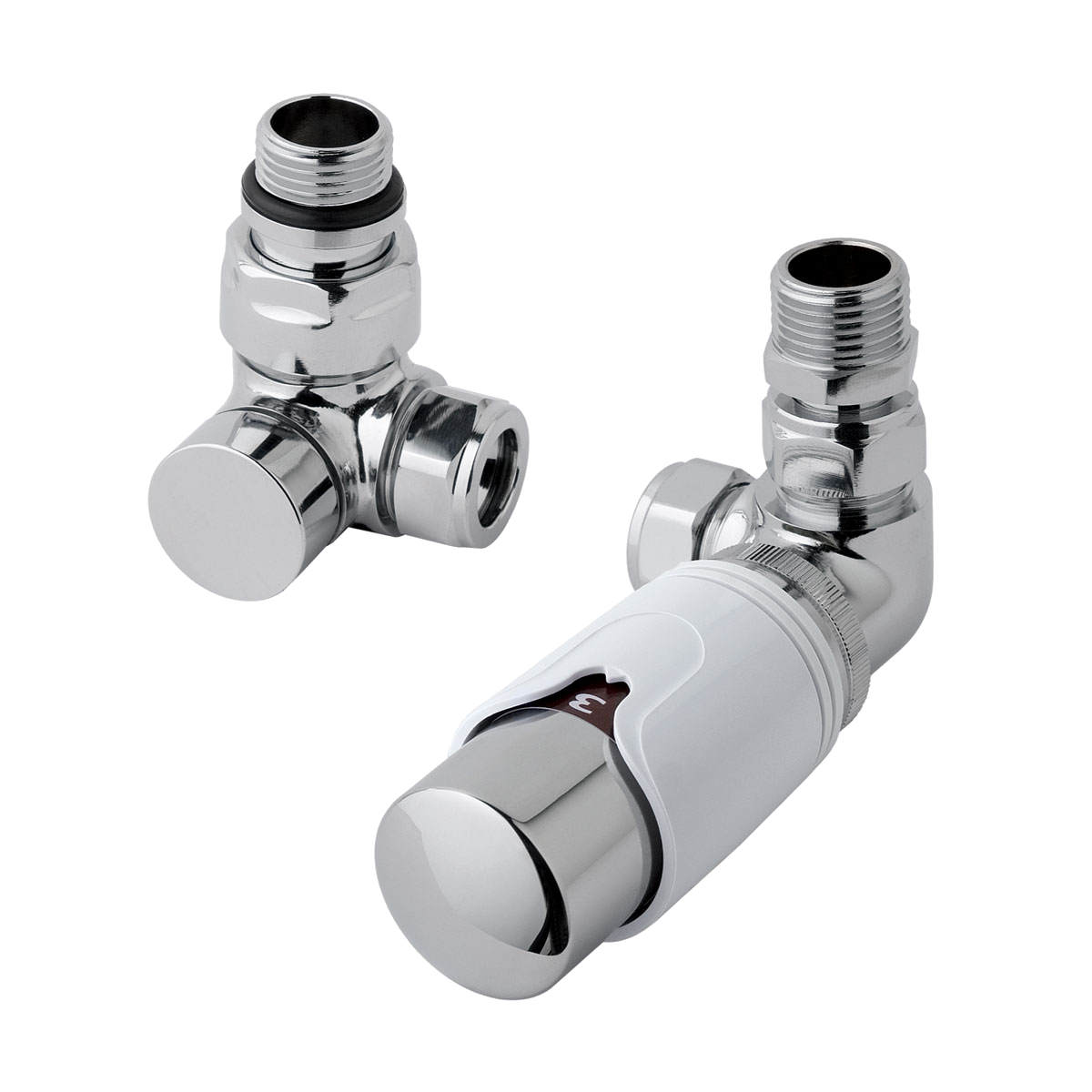

Corner Vavles

FEATURES

• Connects radiator at 90° angle.

• On side connections, valve head sits vertically.

• On bottom connections, valve head sits under the radiator.

COMPATIBLE WITH:

- Connections at the sides & pipework from the wall.

- Connections at the bottom & pipework from the wall.

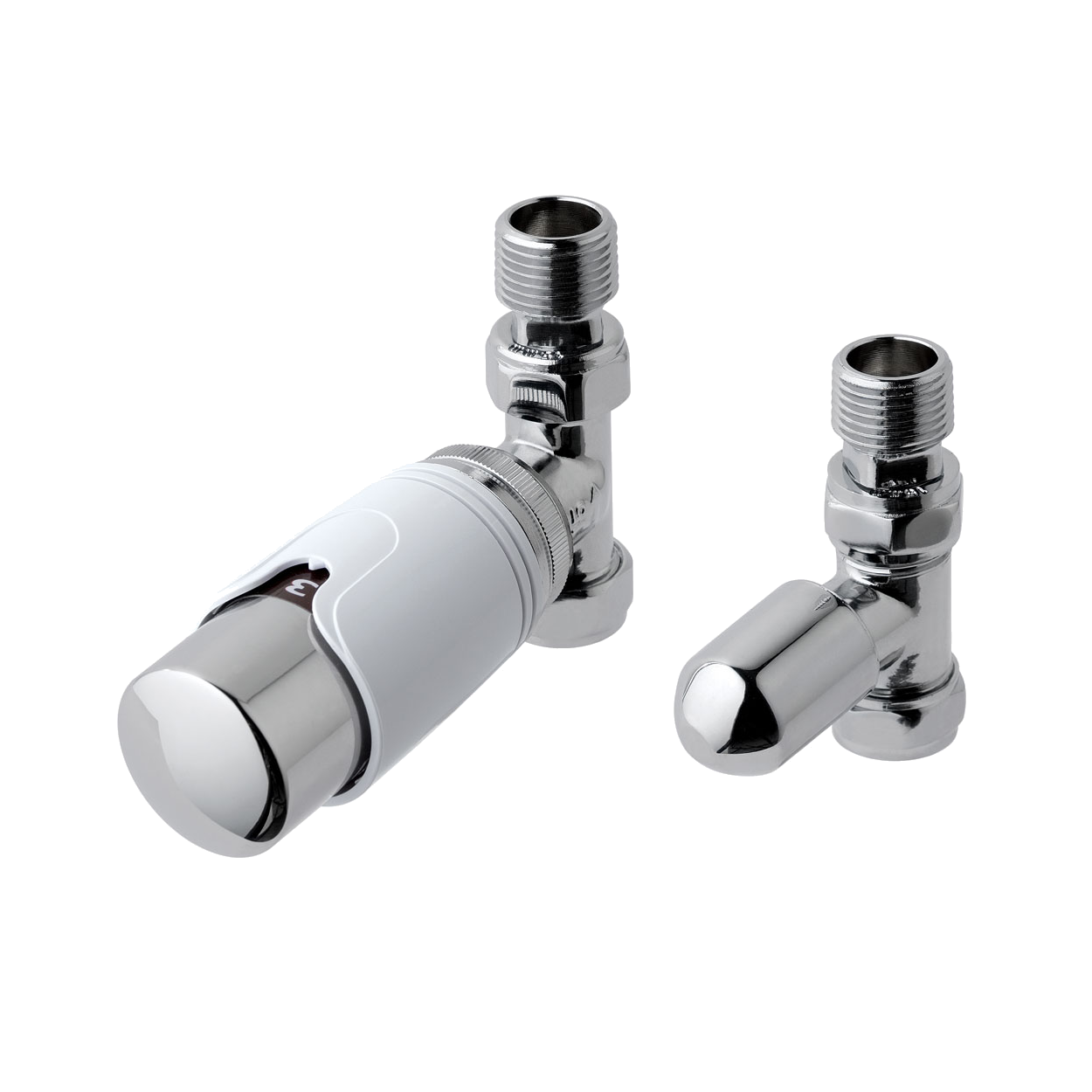

Straight Valves

FEATURES

• Fits best to bottom connection towel rails & radiators.

• Suitable only with bottom connection radiators & towel rails with pipework from the floor or along the wall.

• Can be connected vertically or horizontally depending on the pipework.

COMPATIBLE WITH:

- Connections at the bottom & pipework from the floor.

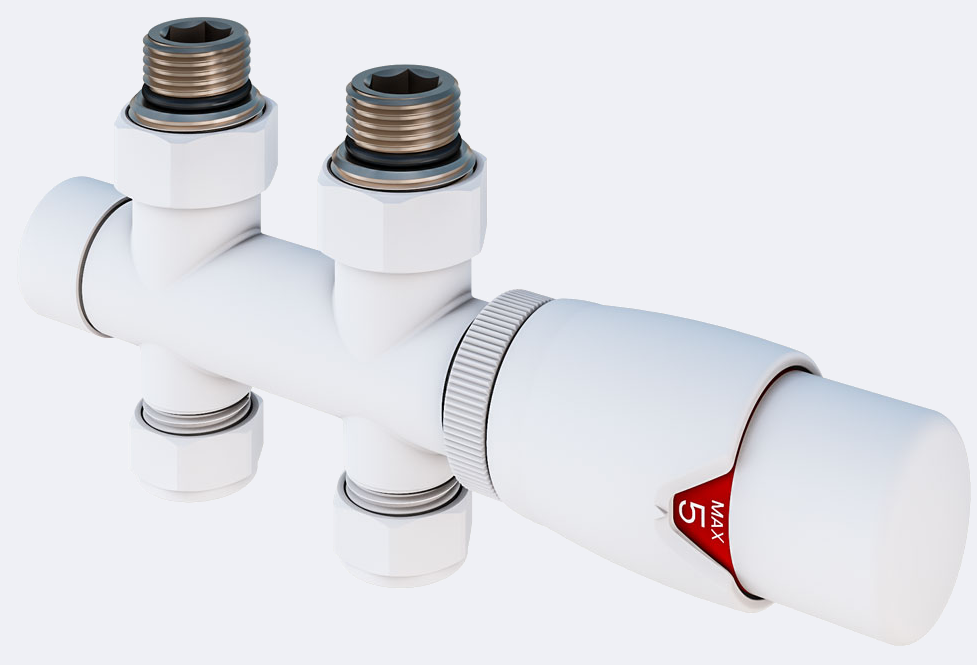

Twin Thermostatic Valves

FEATURES

• Angled & Straight versions available.

• 50mm connection centres.

• Saves space by using one valve instead of two.

• Only suitable for selected models in our ranges.

COMPATIBLE WITH:

- Connections at the bottom & pipework from the floor.

- Connections at the bottom & pipework from the wall.

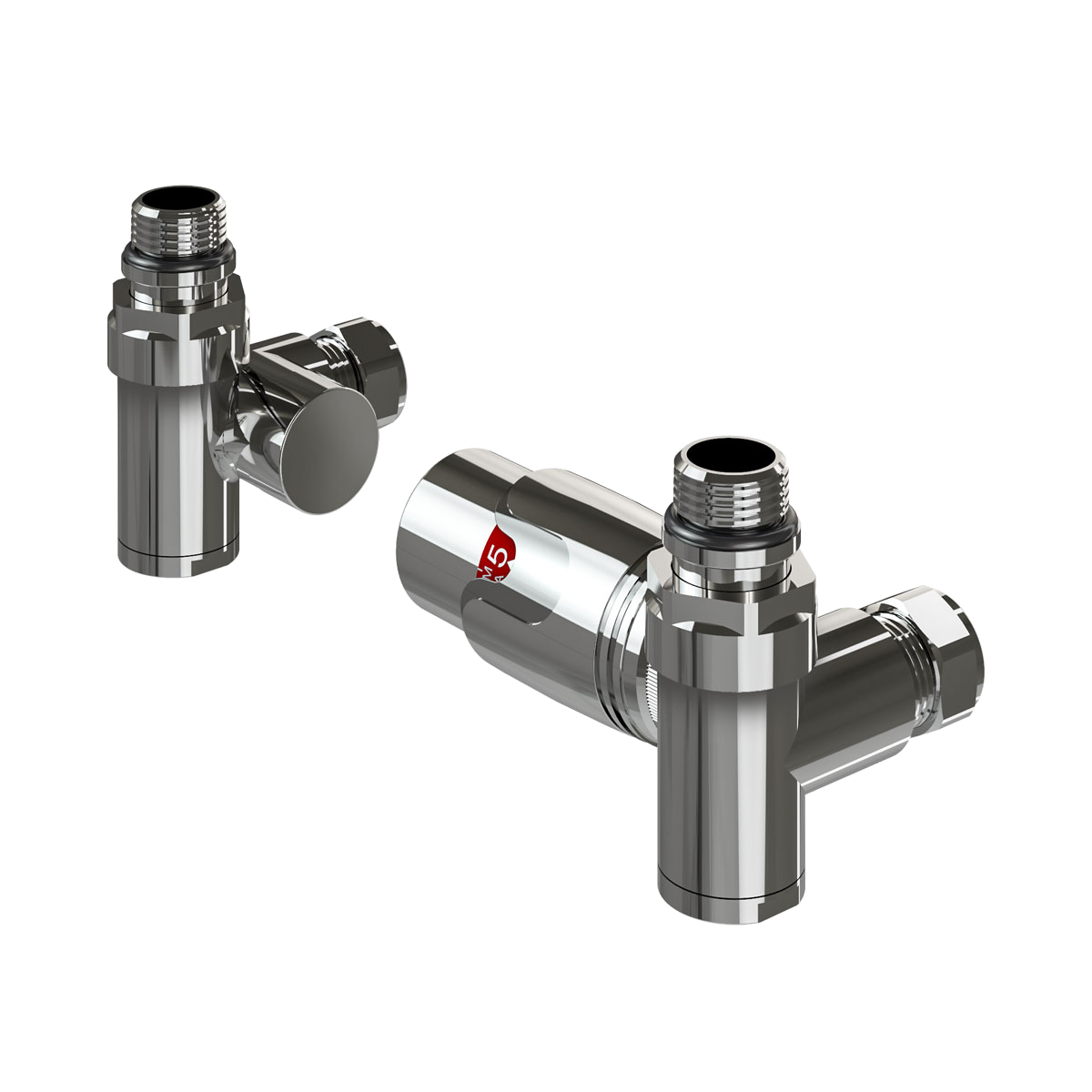

Dual Fuel Thermostatic Valves

FEATURES
• Only corner version available.
• Elements can be fitted from both sides.
• Only Type A & Type A+ element can be used.

COMPATIBLE WITH:
- Connections at the bottom & pipework from the wall.
