Product Information
The Sunvic White Mechanical Central Heating Room Temperature Thermostat offers easy installation and temperature control. Here's a step-by-step guide on how to install and set it up:
Product Code: TLX4808

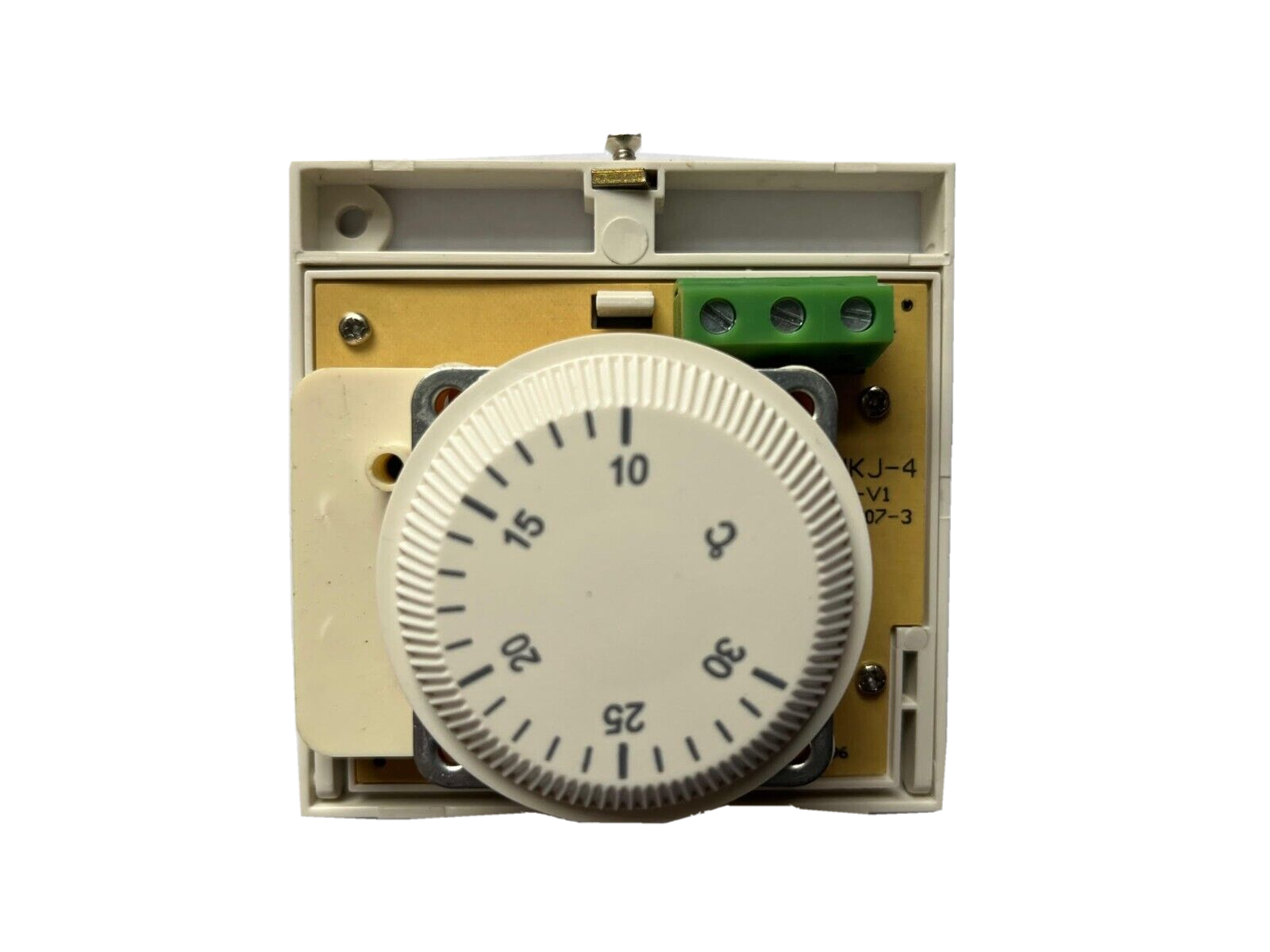

Remove Cover: Loosen the screw on the top of the unit and separate the cover from the backplate. Remove the knob from the thermostat.
Connect Wires: Route the wires through the back of the thermostat and connect them according to the wiring diagram provided. Ensure the wiring is done in accordance with current IEE regulations.

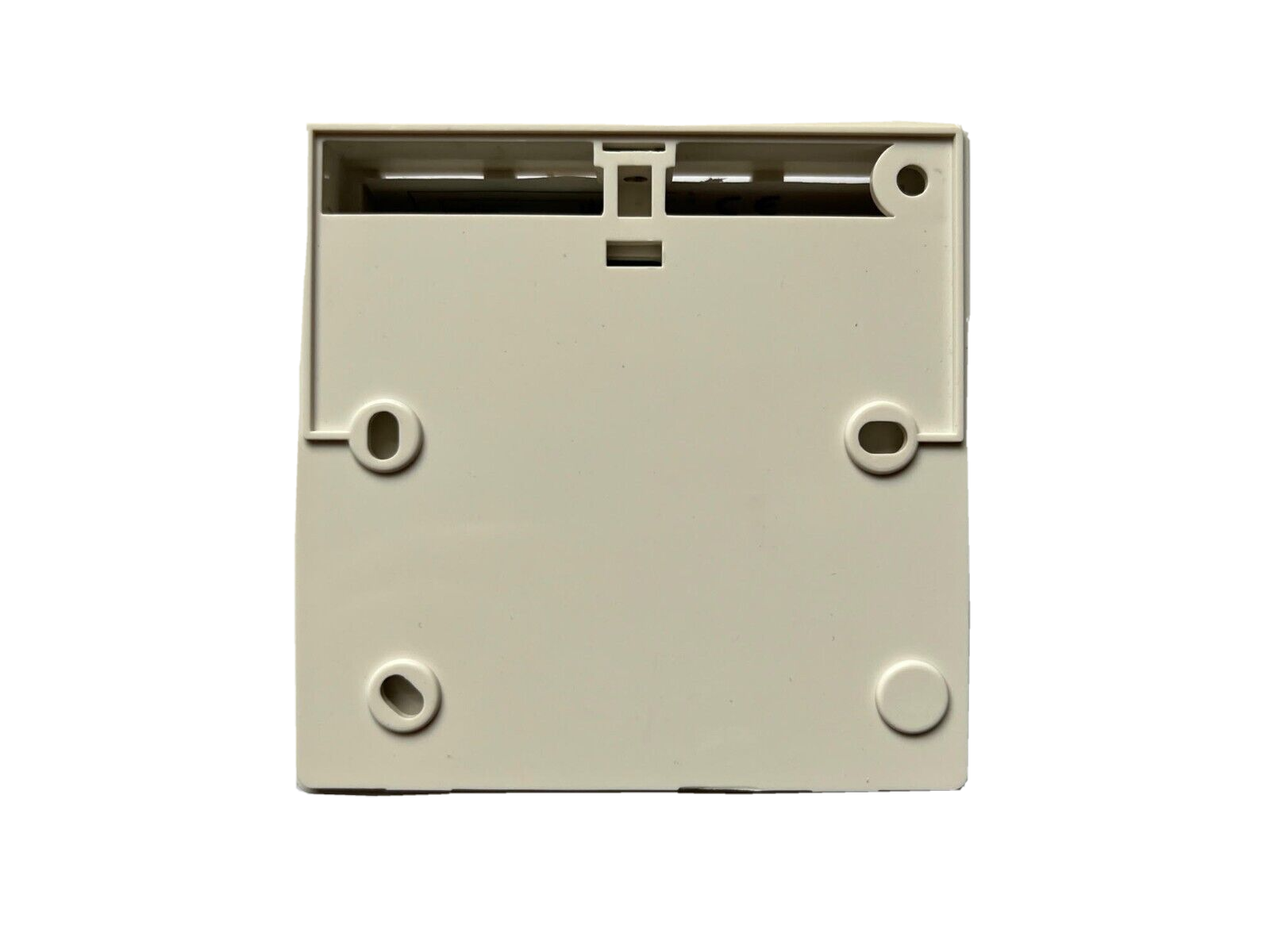

Mount to Wall: Fix the thermostat to the wall using screws (maximum 3mm). Make sure it is securely attached.
Replace Knob and Cover: Once the thermostat is mounted, replace the knob and cover.
Safety Precautions: Before reconnecting the mains supply, ensure that an appropriate fuse is fitted to the circuit for safety.

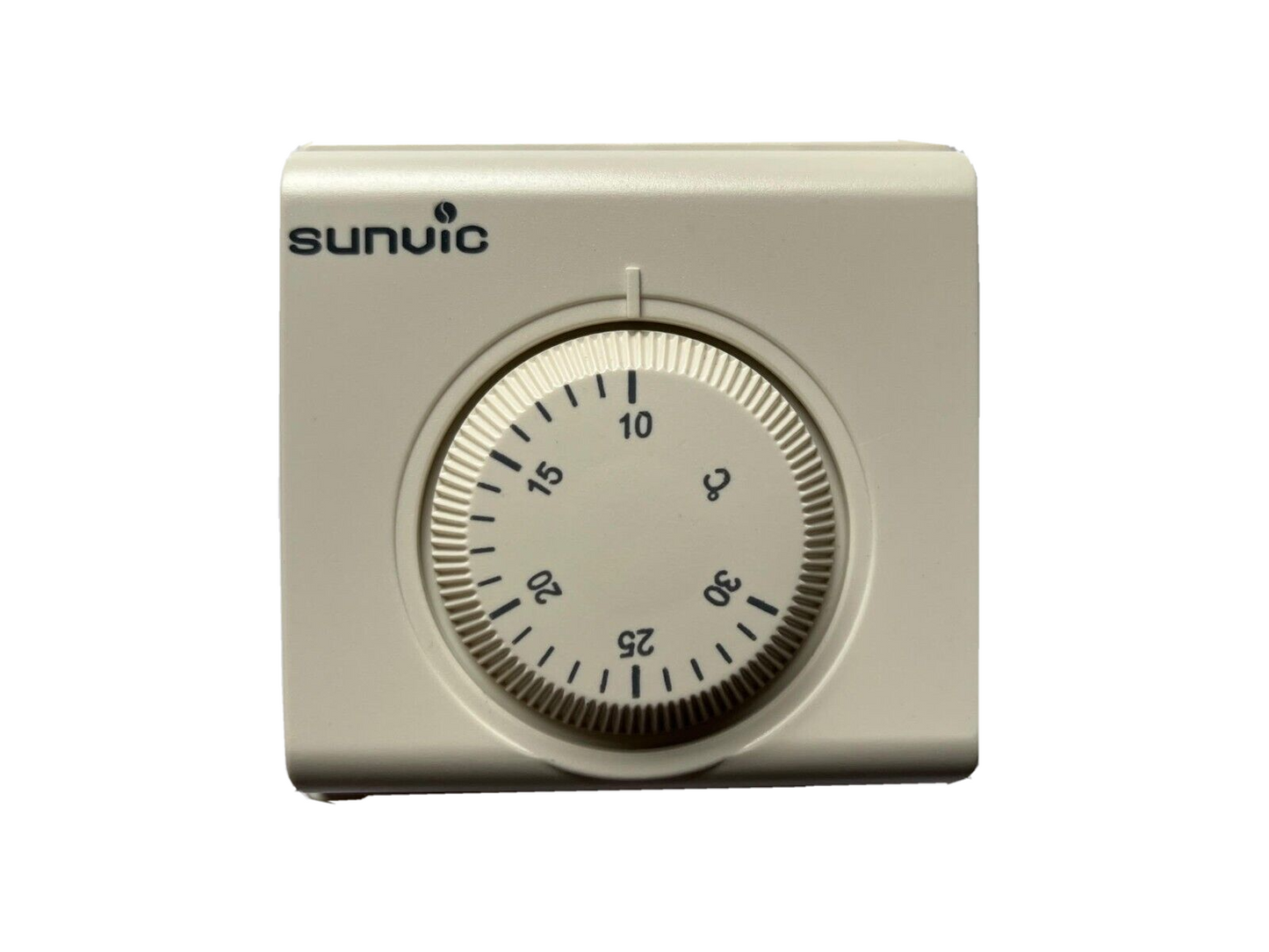

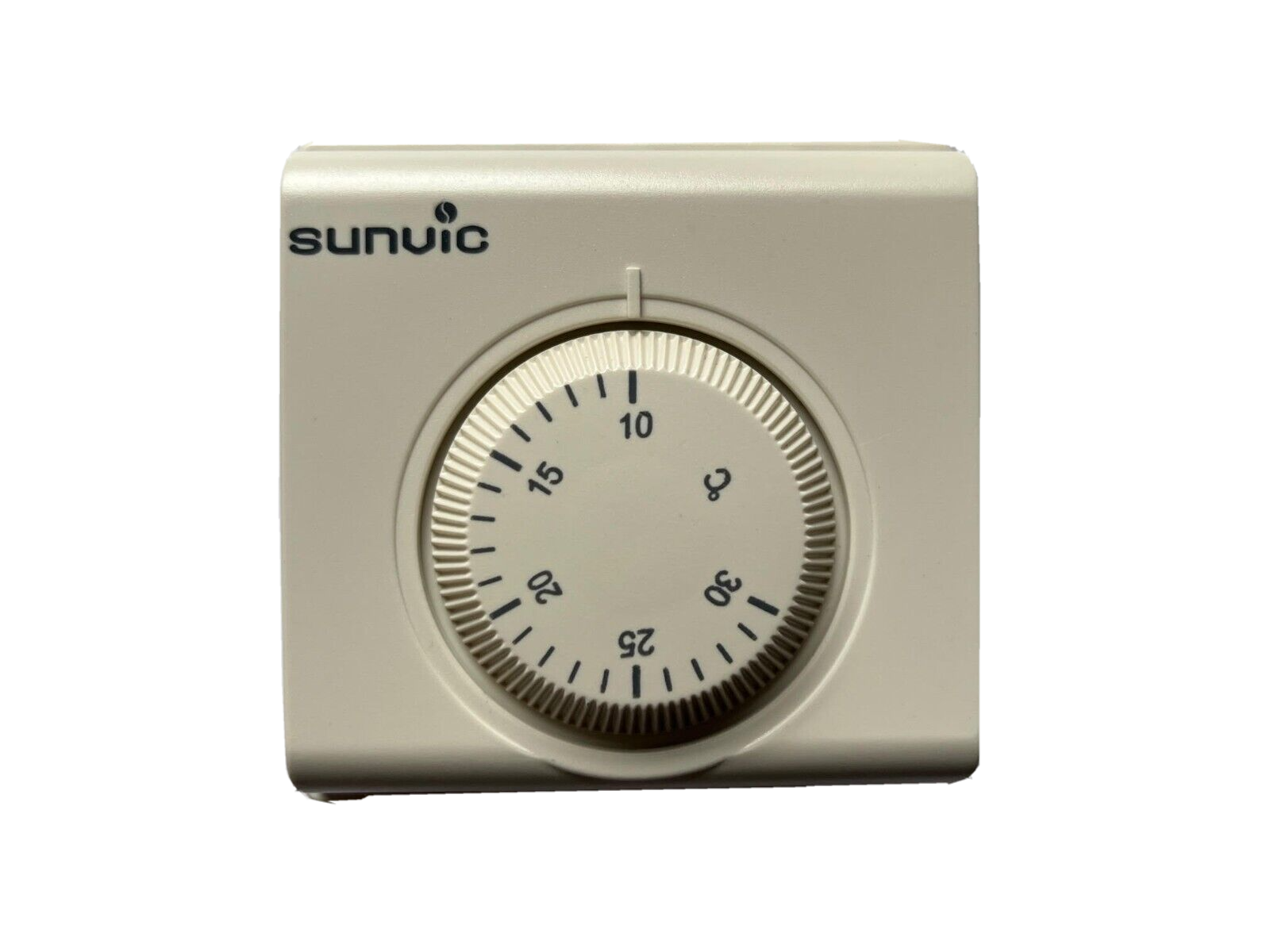

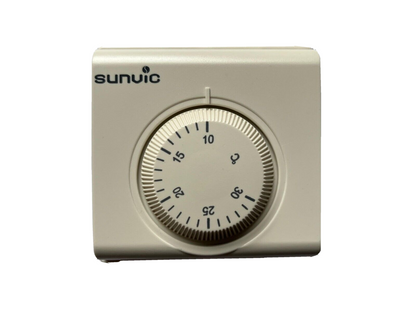

Temperature Setting: To set the desired temperature, turn the knob until the temperature on the knob aligns with the line indicated on the cover. This will determine the temperature at which the thermostat will activate your heating system.
Remember that the cover should not be removed unless the thermostat is isolated from the electrical supply to prevent any accidents or electrical hazards.
By following these steps, you can easily install and set up your Sunvic White Mechanical Central Heating Room Temperature Thermostat for effective temperature control in your home.
